Ship displacement, how?

The "block coefficient" of a ship at any particular draft is the ratio of the volume of displacement at that draft to the volume of a rectangular block having the same overall length, breadth, and depth.

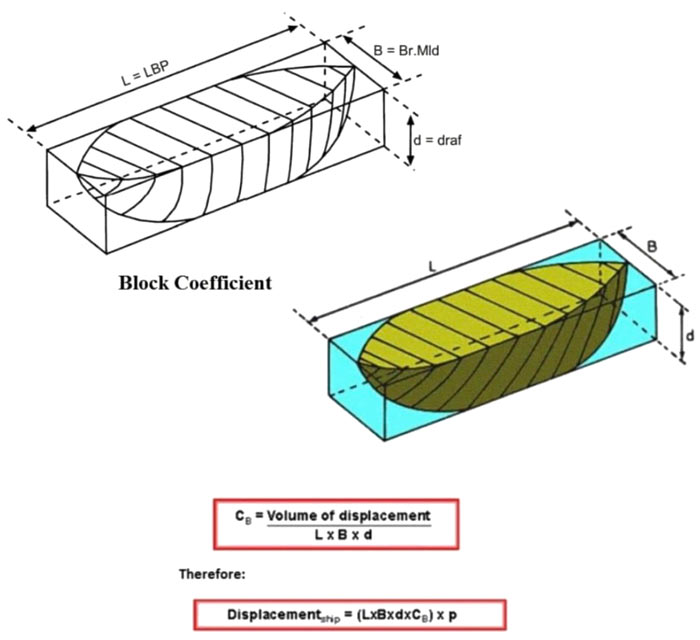

In the figure below, the shaded portion represents the volume of the ship’s displacement at the draft concerned, enclosed in a rectangular block having the same overall length, breadth, and depth.
